Automatic twisting machine with smooth trandmission, low noise, and twist change is very convenient

  • Automatic twisting machine with smooth trandmission, low noise, and twist change is very convenient
  • Automatic twisting machine with smooth trandmission, low noise, and twist change is very convenient
  • Automatic twisting machine with smooth trandmission, low noise, and twist change is very convenient

Automatic twisting machine with smooth trandmission, low noise, and twist change is very convenient

    Unit Price: 15000~40000 USD
    Min. Order: 1 Set/Sets
    Packaging: Exporting Seaworthy Package, Airworthy Package, Wooden Case, Iron Pallet,
    Productivity: 10 sets/month
    Brand: XINJIE
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Supply Ability: 10 sets/month
    Certificate: ISO9001
    HS Code: 8445300
    Port: Shanghai,Jiangyin,Zhangjiagang

Product Description


What is a fiberglass twisting machine?

This series of fiberglass twisting machine can be used for twisting of single or ply drawing glass fiber filament yarn. Twisting machine operators tend machines that spin two or more fibres together into a yarn. They handle raw materials, prepare them for processing, and use twisting machines for the purpose. They also perform routine maintenance of the machinery. Finished yarn is usually used as reinforcing material, electrical insulation material, heat-insulating material, and circuit board.


Model Parameters

XJBN160D

XJBN210D

Spindle numble

160

120

(add or subtract according to 16 spindles )

(add or subtract every 12 spindles )

Spindle gauge(mm)

157.5

210

Spindle speed (r/min)

20005000

2000-5000

Diameter of steel ring(mm)

0115/0120

0165

Bottom roller diameter(mm)

080

080

Max lift (mm)

310

310

Optinum spin density(tex)

22.5-396

22.5-396

Maximum yarn feeding speed(nVmin)

100

100

Twist range(T/m)

23-320

23-320

Twisting direction

S ZorS

zS ZorS

Package form

Feeding bottle, bipyramid, cylinder

Feeding bottle, bipyramid, cylinder

Maximum package(kg)

2

4

Overall dimensions(mm)

14830x1416x2100

14830x1416x2100

Xjbn160d 1

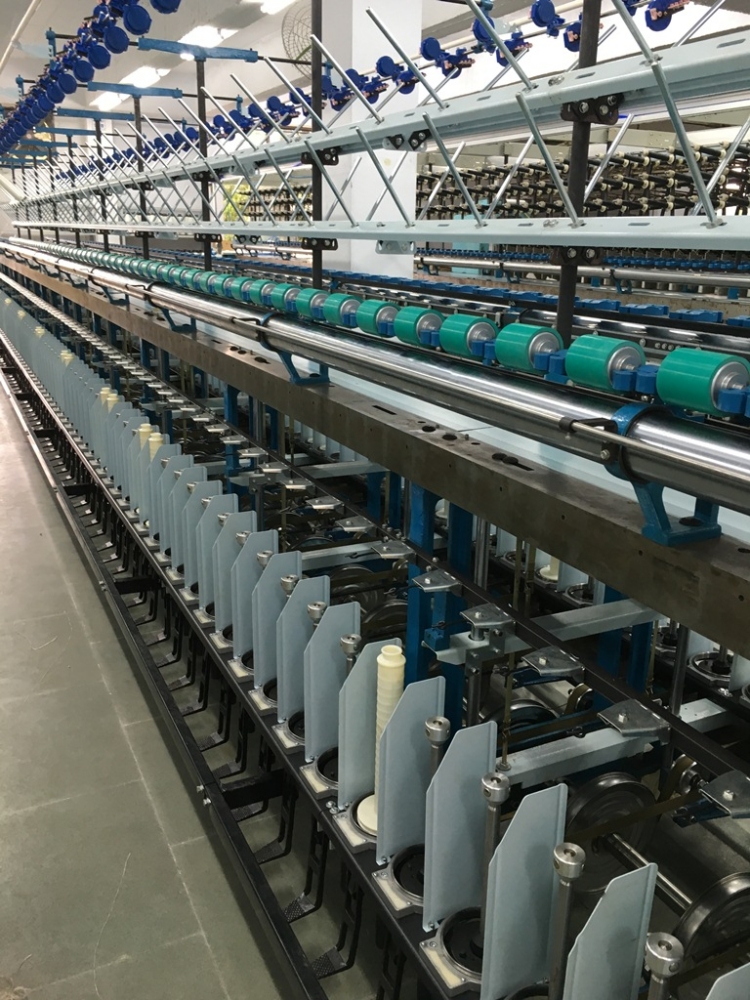

Positive Feeding Type Twisting Machine for Fiberglass
Application and Feature »»
Retreat positive solution in this series of glass fiber twisting machine is applicable to the original wire drawing machine pulled out a retirement solution plus Dam. Flexible, driven by servo motor driven yarn feed system constant linear velocity to send the yarn, smooth transmission, twisiting degree change is very convenient.
Spring-loaded tension wheel mechanism, tension stability.
Stable and reliable tension lever spring tension mechanism.
Spindle inverter control, lifting system servo motor drive, to achieve synchronization parking, favorable balloon tension and winding molding relief to replace the pulley.
♦ Sand tube take the initiative to send the yarn, linear feeders, reduce hairiness, and inprove the yarn quality.
♦ Pneumatic brake and relible.
♦ Forming a variety of computer.
♦ Cast iron rack, strong rigidity.

Xjbn 4


JIEPAI MACHINERY

  • 1
  • 2
  • 3
  • 4
  • 5
 Our group company established in 1997, and we have 2 facotories. One is DONGJIE for textile special parts including bottom roller,Tin pulley and ring board; another named JIEPAI branded XINJIE for textile machinery especially for yarn dyeing related machine which produces high speed soft and hard winding machine, doubling twisting machine and yarn dyeing machine, ect..
